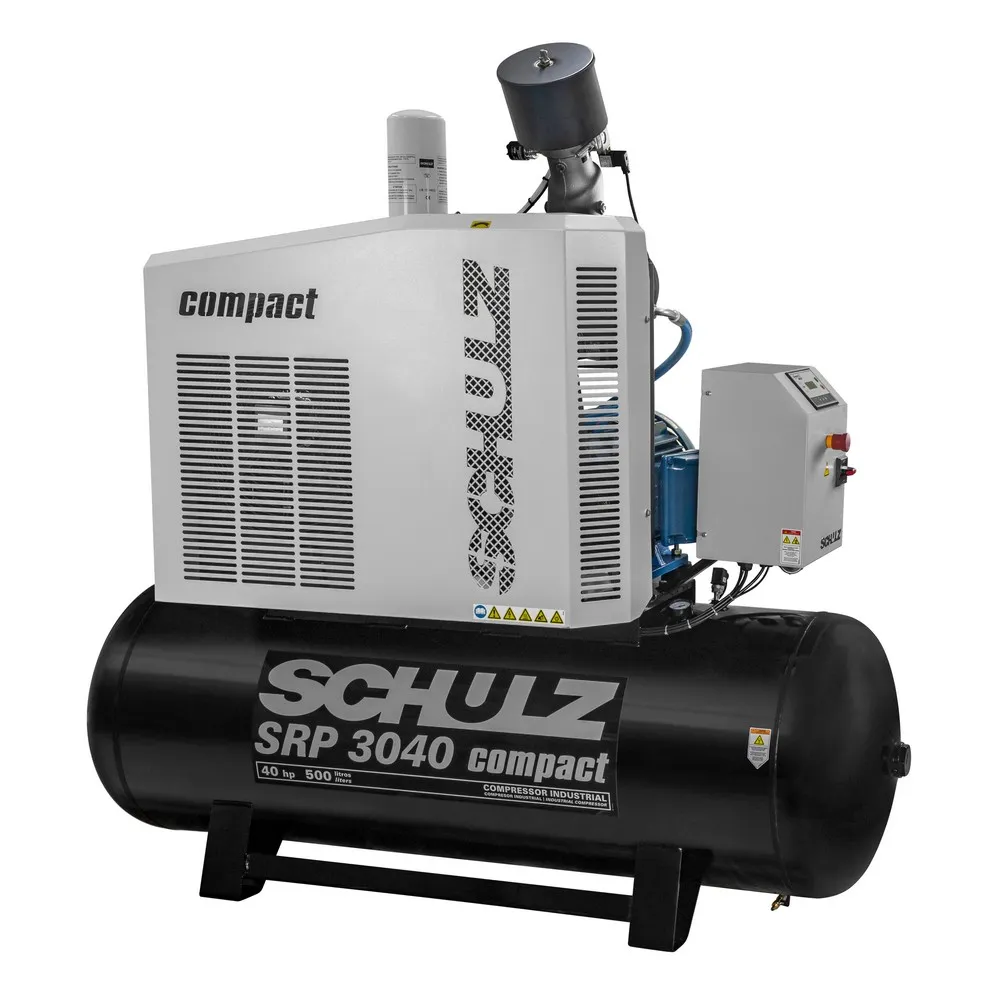

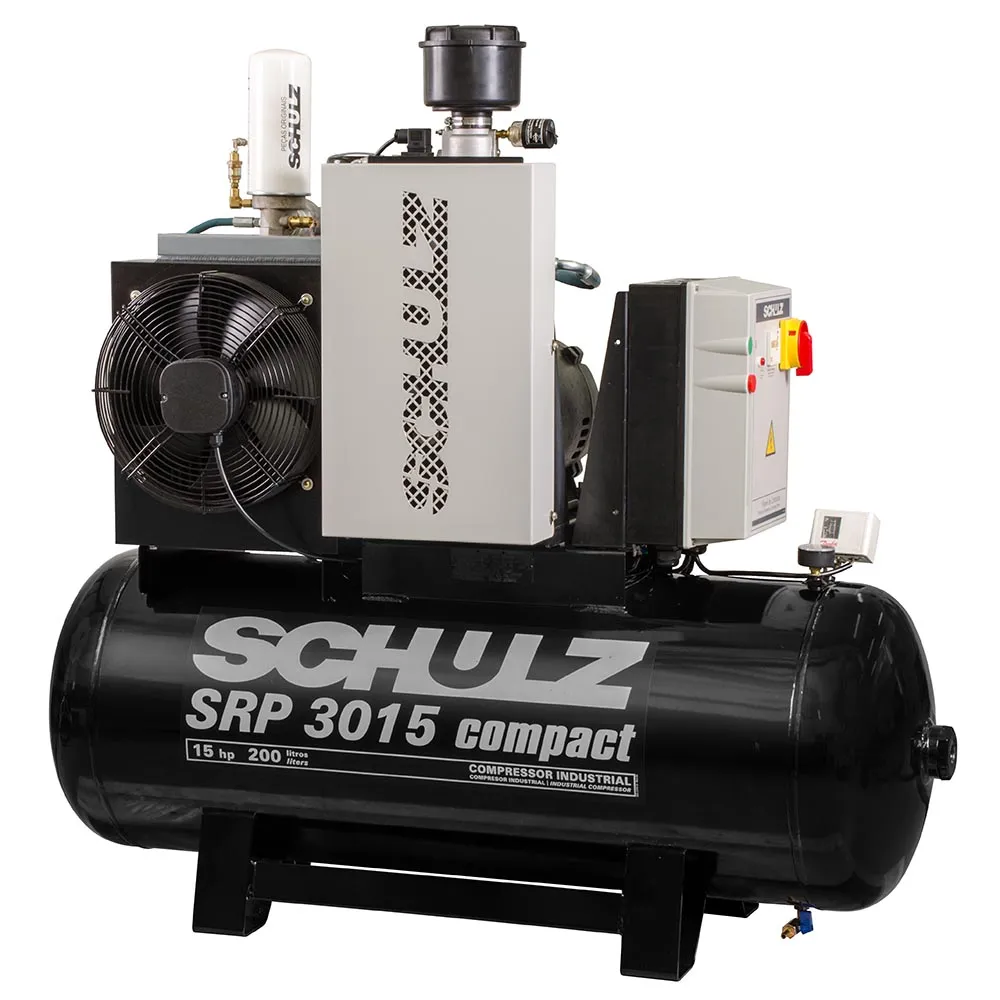

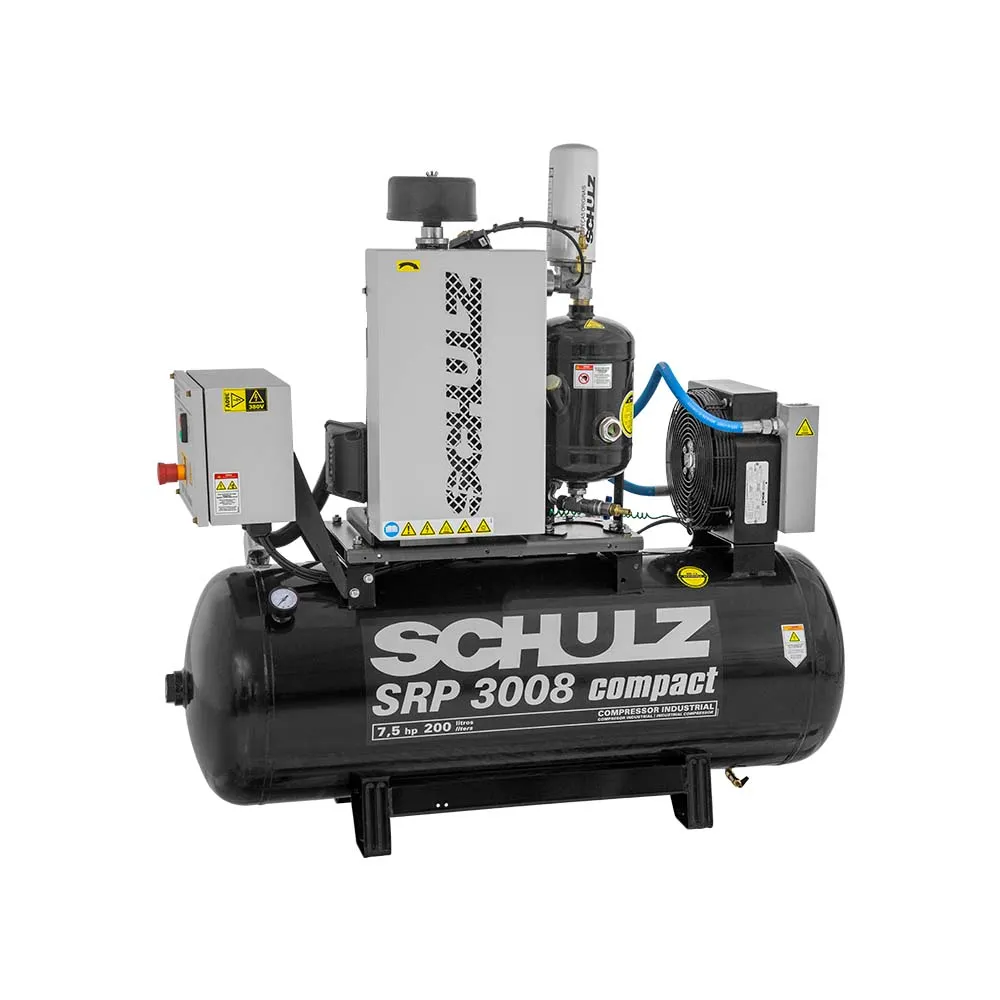

Schulz SRP Compact Rotary Screw Compressors
The SEP Compact Line was developed with products from 7.5 to 40 hp for companies that are looking for a reliable operation and low investment. Designed opened without enclosures, these compressors can operate 24 hours continuous and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Furthermore, Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. Compact is the solution for those seeking an excellent cost x benefit ratio. Choose yours.
| Model | SRP 3008 COMPACT-1 | SRP 3008 COMPACT-3 | SRP 3015 COMPACT II | SRP 3025 COMPACT | SRP 3040 COMPACT | SRP 3008 COMPACT-3 | SRP 3015 COMPACT II | SRP 3025 COMPACT | SRP 3040 COMPACT |
|---|---|---|---|---|---|---|---|---|---|
| Free Air @125 PSI (CFM) | 25 | 25 | 51 | 89 | 150 | 25 | 51 | 89 | 150 |
| Voltage (V) | 230 | 208-230/460 | 208-230/460 | 208-230/460 | 208-230/460 | 460 | 460 | 460 | 460 |
| Free Air @125 psi (l/min) | 722 | 722 | 1,444 | 2,510 | 4,247 | 722 | 1,444 | 2,510 | 4,247 |
| Motor Power (kW) | 5.5 | 5.5 | 11 | 18 | 30 | 5,5 | 11 | 18,5 | 30 |
| Noise Level (dbA) | 83 | 83 | 86 | 86 | 91 | 83 | 86 | 86 | 91 |
| Tank Size (gal) | 60 | 60 | 60 | 80 | 120 | 60 | 60 | 80 | 120 |
| Discharge Connection (in) | 1/2" | 1/2" | 3/4" | 3/4" | 1" | 1/2" | 3/4" | 3/4" | 1" |
| Motor Power (hp) | 7.5 | 7.5 | 15 | 25 | 40 | 7,5 | 15 | 25 | 40 |
| Maximum Operating Pressure (PSI) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Code | 970.3890-0 | 970.3891-0 | 970.3454-0/F | 970.2840-0 | 970.3233-0 | 970.4340-0 | 970.4341-0 | 970.4342-0 | 970.4343-0 |
-
